Hearken Pneumatic 3-Way Thread Ball Valve

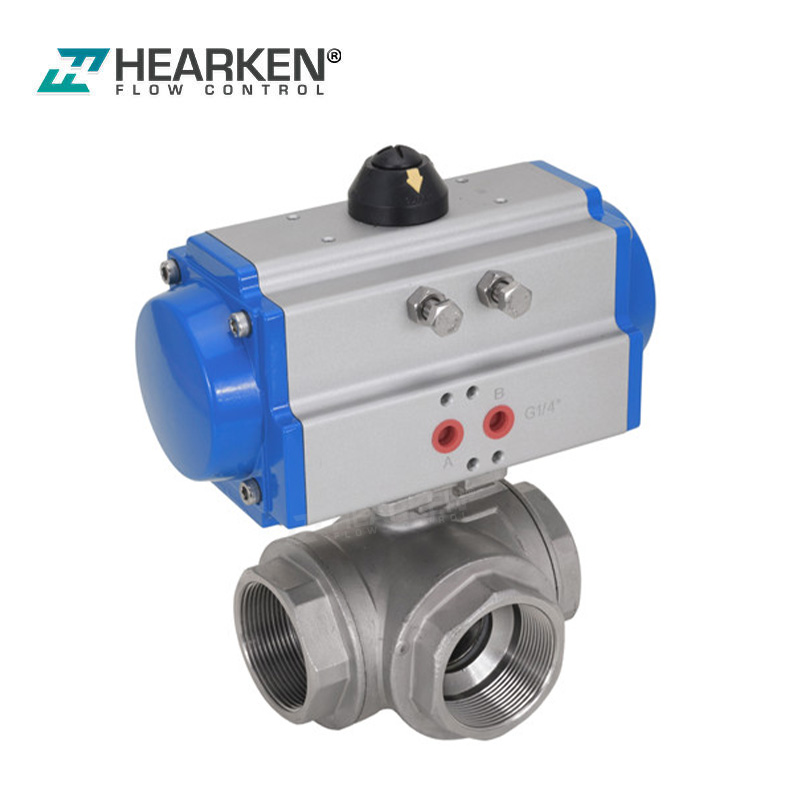

Hearken Pneumatic 3-Way Thread Ball Valve

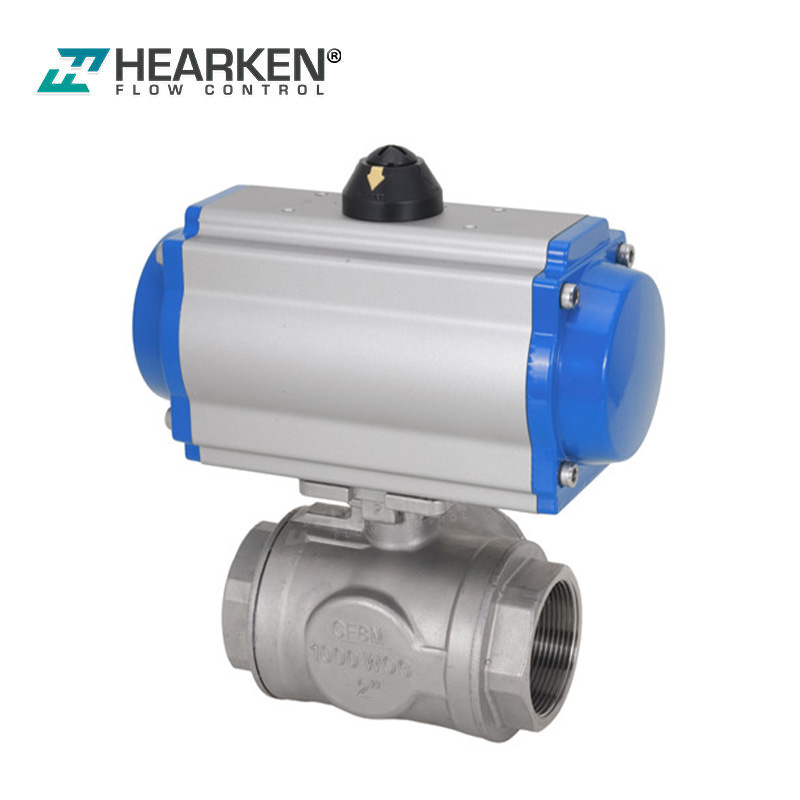

Pneumatic 3-Way Thread Ball Vale MOQ
Pneumatic 3-Way Thread Ball Valve

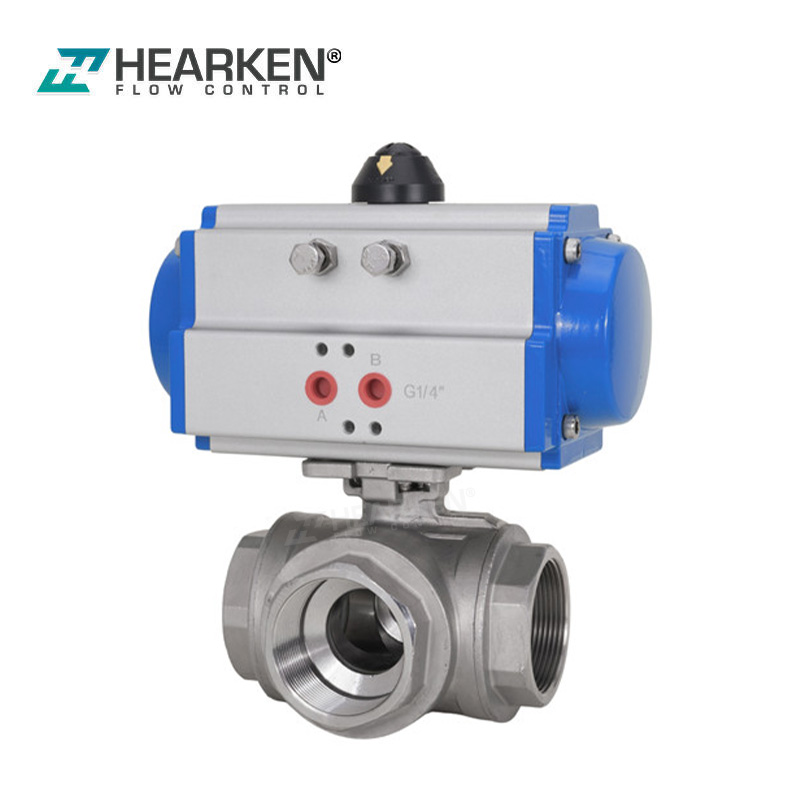

Pneumatic 3-Way Thread Ball Valve Supplier

Engineered for precision flow control and industrial durability, this pneumatic 3-way threaded ball valve is a versatile solution for complex piping systems requiring reliable diverting or mixing capabilities.

Technical Specifications
  • Size Range: Available from DN15 to DN100.
  • Flow Configuration: Available in L-port or T-port designs.
  • Construction Materials: Manufactured from SS304, SS316, or Carbon Steel.
  • Seal Material: High-grade PTFE for reliable shut-off.
  • Temperature Range: Operational from -20 to 150 Degrees.
  • Standards Compliance: Connection standards follow ISO 5211 or DIN 3337.
  • Pressure Ratings: Multi-standard support including PN10 / PN16, ANSI150, DIN16, and JIS 10K/16K.



Actuation and Performance
  • Actuator Type: Features a pneumatic actuator with both Double Acting and Spring Return options.
  • Protection Rating: IP67 weather-proof classification for demanding environments.
  • Media Compatibility: Suitable for water, air, gas, petroleum, oil, and various liquids.



Parts and Material

No.

Part Name

Material

1

Valve Body

Stainless Steel

2

Valve Bonnet

Stainless Steel

3

Ball

Stainless Steel

4

Valve Seat

PTFE/Nylon/PPL

5

Seal Ring

PTFE

6

Valve Stem

Stainless Steel

7

Thrust Washer

Stainless Steel

8

O - Ring

PTFE

9

Packing

PTFE

10

Nut

Stainless Steel

11

Gland

Stainless Steel

12

Bolt

Stainless Steel

13

Solenoid Valve

Aluminum Alloy

14

Pneumatic Actuator

Aluminum Alloy

15

Air Filter

Aluminum Alloy + PC

16

Limit Switch Box

Aluminum Alloy

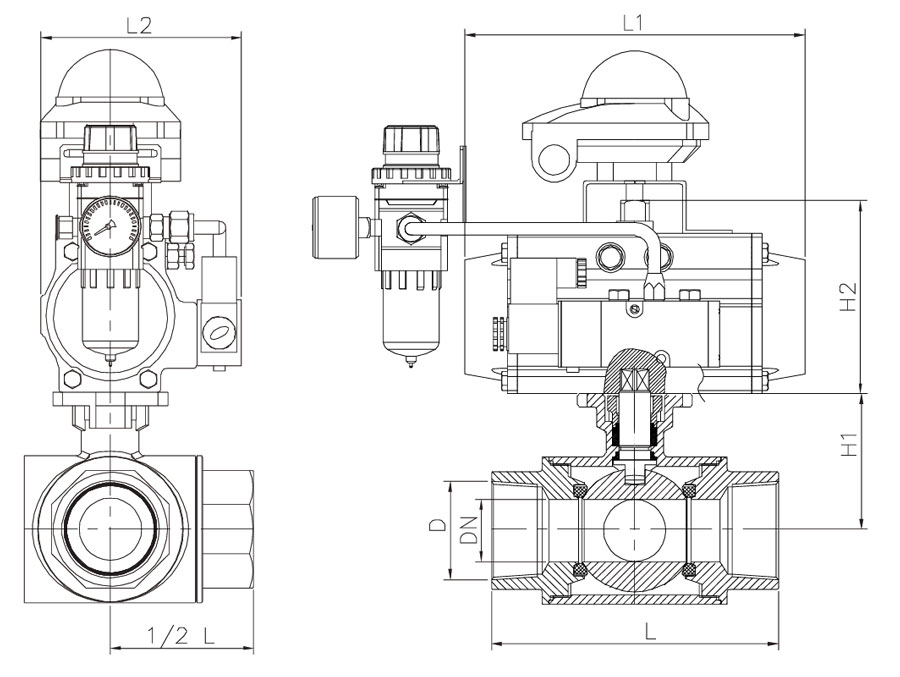

Dimensions and Actuator Models



DN

IN

d

L

L1

L2

H1

H2

Actuator Model

15

1/2"

10

70

153.7/153.7

72.5/72.5

46

92.3/92.3

HPA052DA/HPA052SR

20

3/4"

15

85

153.7/172.4

72.5/83

49

92.3/110.7

HPA052DA/HPA063SR

25

1"

20

90

172.4/188.3

83/95.5

61

110.7/121

HPA063DA/HPA075SR

32

1 1/4"

25

120

188.3/215

95.5/103.5

62

121/128

HPA075DA/HPA083SR

40

1 1/2"

32

140

215/248.5

103.5/108

77

121/136.2

HPA083DA/HPA092SR

50

2"

40

155

248.5/277.5

108/121.5

83

136.2/154.5

HPA092DA/HPA105SR

65

2 1/2"

64

200

277.5/358.3

121.5/142

100

154.5/187.6

HPA105DA/HPA125SR

80

3"

73

240

358.3/403.6

142/151

120

187.6/204.7

HPA125DA/HPA140SR

100

4"

100



403.6/468.4

151/174

135

204.7/230

HPA140DA/HPA160SR
