Hearken Pneumatic Actuated Sanitary Tri-Clamp Ball Valve
Hearken Pneumatic Actuated Sanitary Tri-Clamp Ball Valve
Pneumatic Actuated Sanitary Tri-Clamp Ball Valve

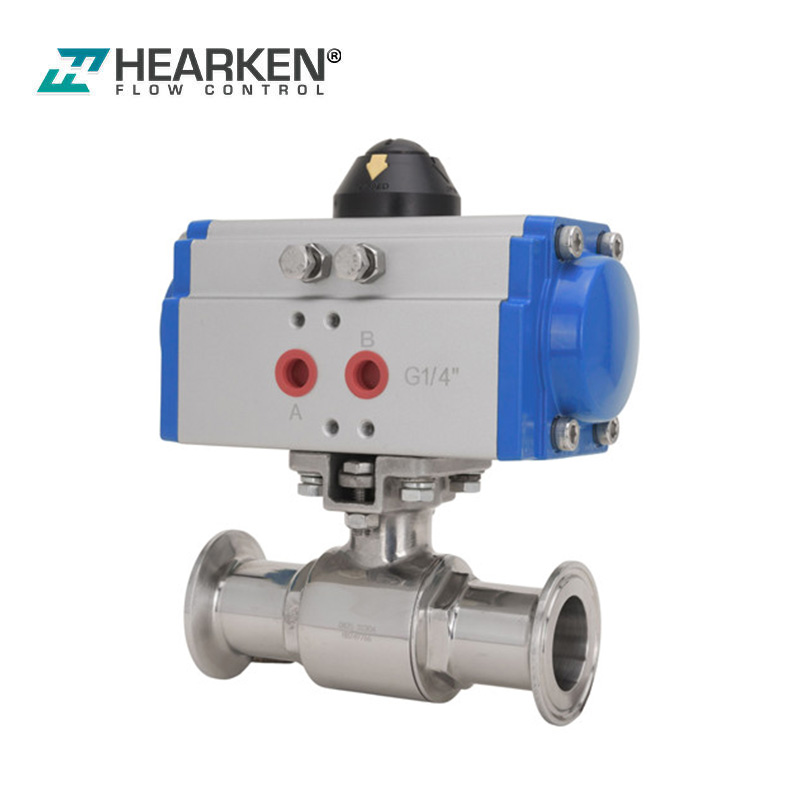

Pneumatic Actuated Sanitary Tri-Clamp Ball Valve MOQ

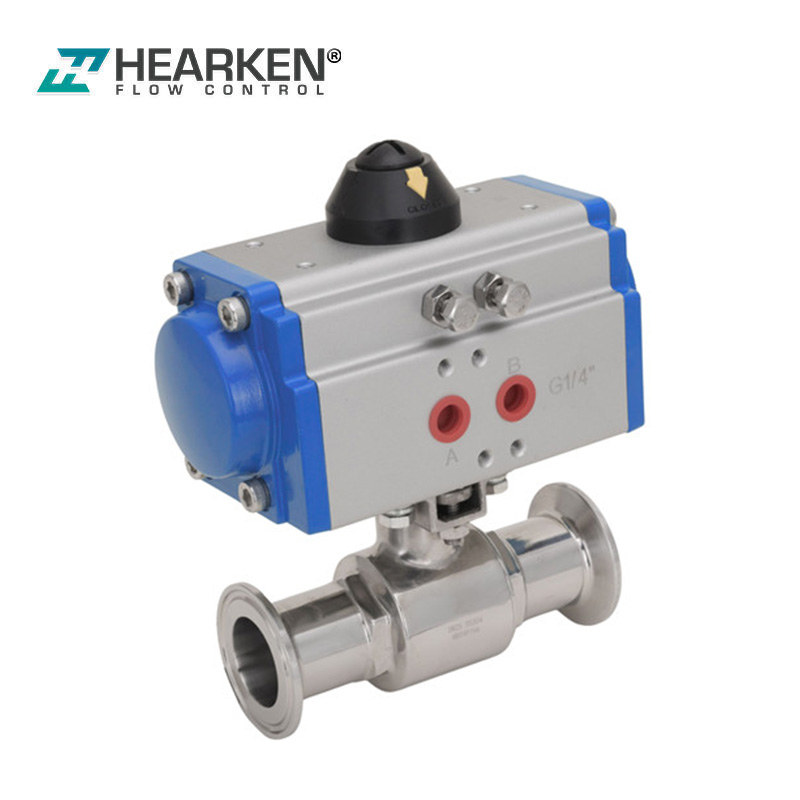

Pneumatic Actuated Sanitary Tri-Clamp Ball Valve PRICE

A hygienic flow control solution optimized for food, beverage, and dairy processing applications, this sanitary pneumatic tri-clamp ball valve ensures contamination-free operation and easy cleaning, meeting strict industry hygiene standards.

Technical Specifications
  • Size: DN15 to DN100
  • Body material: SS304, SS316
  • Seal material: PTFE
  • Working temperature: -20°C to 150°C
  • Connection: ISO 5211 / DIN 3337 tri-clamp
  • Pressure rating: PN10/16, ANSI 150, DIN 16, JIS 10K/16K
  • Media: Milk, beer, edible oil, syrup, beverage concentrate, and other non-abrasive sanitary fluids
  • Protection class: IP67 weatherproof



Actuation and Performance
  • The pneumatic actuator is available in double-acting and spring-return configurations.
  • Pneumatic actuation delivers fast, responsive valve positioning to support efficient, continuous processing in high-throughput production lines.
  • The IP67 weatherproof rating ensures reliable performance across indoor and outdoor installation environments.

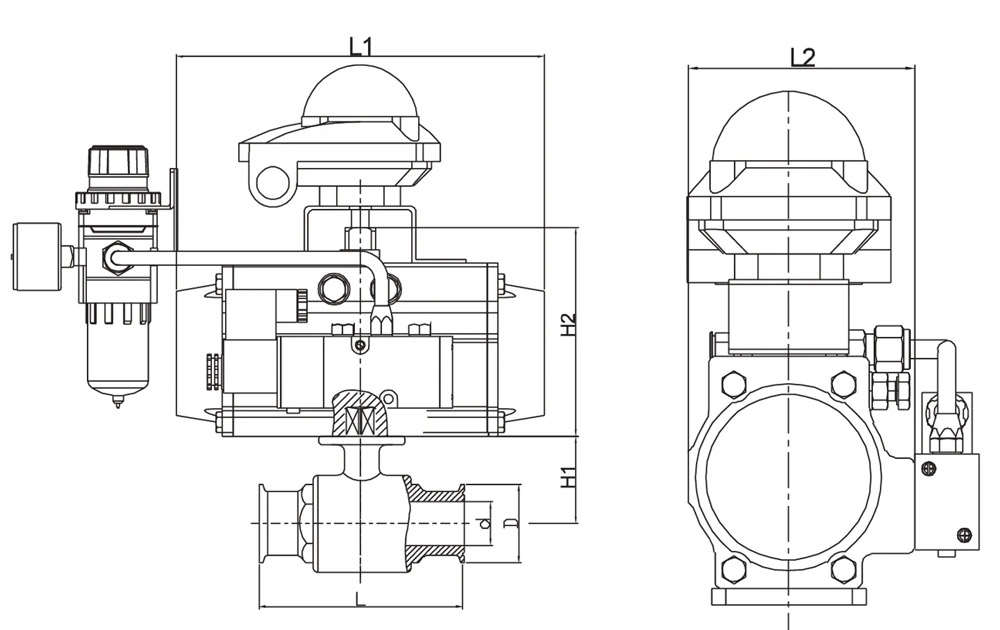

Dimension and Connection Size



Pipe OD

IN

d

D

L

L1

L2

H1

H2

Actuator Model

19

3/4"

16

50.5

100

153.7/172.4

72.5/83

70

92.3/110.7

HPA052DA/HPA063SR

25.4

1"

22

50.5

105

153.7/188.3

72.5/95.5

70

92.3/121

HPA052DA/HPA075SR

31.8

1 1/4"

29

50.5

120

172.4/188.3

83/95.5

70

110.7/121

HPA063DA/HPA075SR

38.1

1 1/2"

35

50.5

137

188.3/215

95.5/103.5

70

121/128

HPA075DA/HPA083SR

50.8

2"

48

64

160

215/248.5

103.5/108

87

121/136.2

HPA083DA/HPA092SR

63.5

2 1/2"

58

77

170

248.5/277.5

108/121.5

103

136.2/154.5

HPA092DA/HPA105SR

76.2

3"

70

91

196

277.5/358.3

121.5/142

110

154.5/187.6

HPA105DA/HPA125SR

89

3 1/2"

85

106

235

358.3/403.6

142/151

128

187.6/204.7

HPA125DA/HPA140SR

101.6

4"

97

119

270

358.3/403.6

142/151

135

187.6/204.7

HPA125DA/HPA140SR
