Sanitary 3 Way Ball Valve with Pneumatic Actuator

GET A QUOTE >> >

Hearken Sanitary 3-Way Ball Valve with Pneumatic Actuator

Hearken Sanitary 3-Way Ball Valve with Pneumatic Actuator

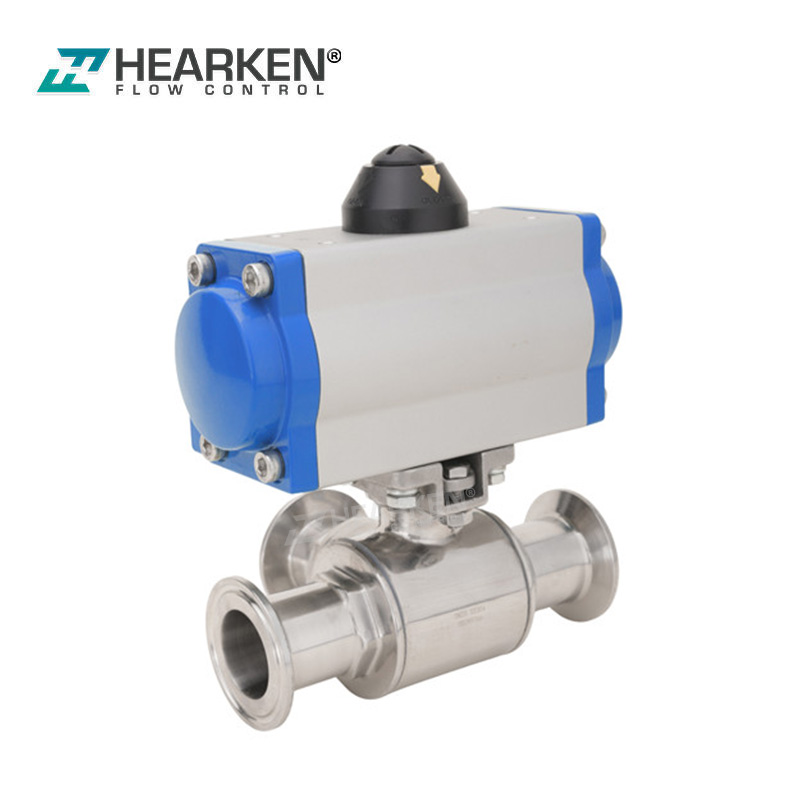

Sanitary 3-Way Ball Valve with Pneumatic Actuator

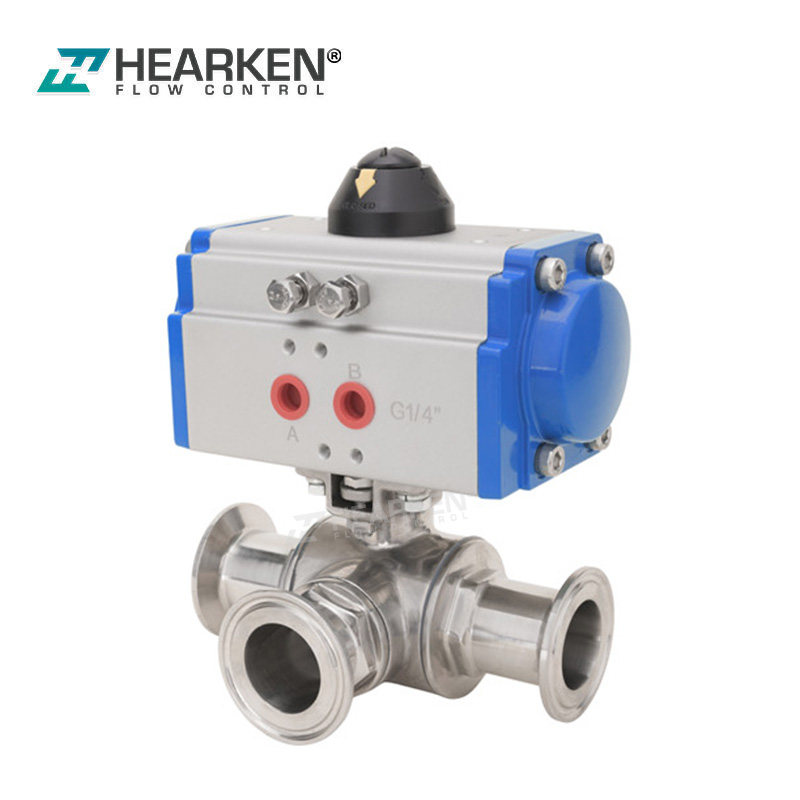

Sanitary 3-Way Ball Valve with Pneumatic Actuator MOQ

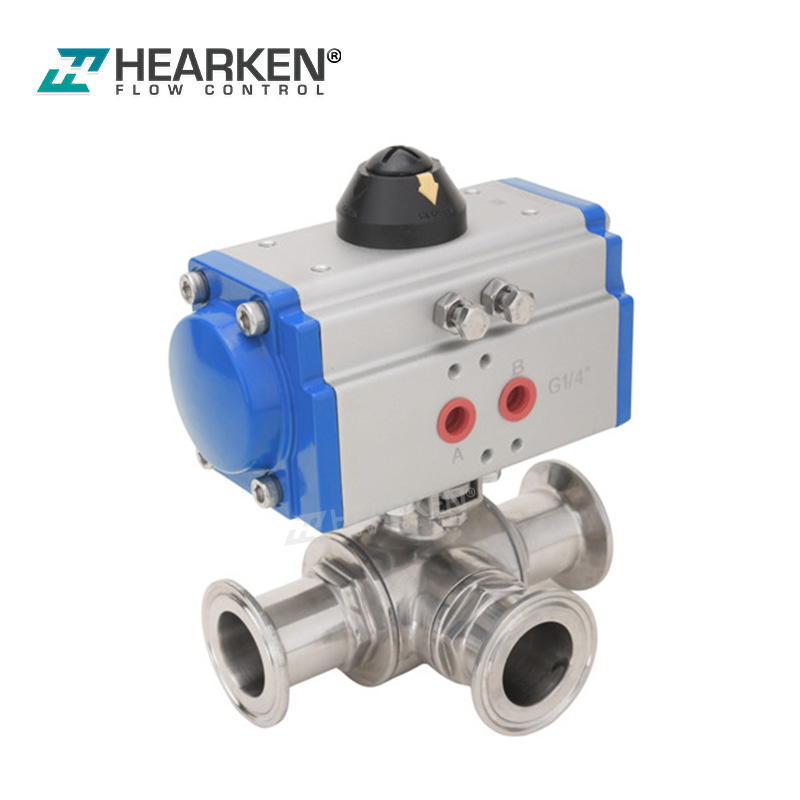

Sanitary 3-Way Ball Valve with Pneumatic Actuator price

A purpose-built sanitary flow control valve for food, beverage, and dairy processing environments, this 3-way pneumatic tri-clamp model enables precise flow diversion and mixing while adhering to strict hygiene protocols.

Description

Technical Specifications

Size: DN15 to DN100
Flow configuration: L-port for directional switching, T-port for flow mixing or diversion
Body material: SS304, SS316
Seal material: PTFE
Working temperature: -20°C to 150°C
Connection: ISO 5211 / DIN 3337 tri-clamp
Pressure rating: PN10/16, ANSI 150, DIN 16, JIS 10K/16K
Media: Milk, beer, edible oil, syrup, beverage concentrate, and other non-abrasive sanitary liquids
Protection class: IP67 weatherproof

Actuation and Performance

The pneumatic actuator comes in double-acting and spring-return options
Pneumatic operation delivers rapid valve actuation, enabling seamless flow adjustments.
The tri-clamp design facilitates quick, tool-free disassembly or manual cleaning, while the IP67 rating ensures consistent performance.

Dimension and Connection Size

Pipe OD	IN	d	D	L1	L2	H1	L	H2	Actuator Model
19	3/4"	16	50.5	153.7/188.3	72.5/95.5	45	108	92.3/121	HPA052DA/HPA075SR
25	1"	22	50.5	172.4/188.3	83/95.5	46	120	110.7/121	HPA063DA/HPA075SR
32	1 1/4"	29	50.5	188.3/215	95.5/103.5	55	128	121/128	HPA075DA/HPA083SR
38	1 1/2"	35	50.5	215/248.5	103.5/108	65	140	121/136.2	HPA083DA/HPA092SR
51	2"	48	64	248.5/277.5	108/121.5	68	165	136.2/154.5	HPA092DA/HPA105SR
63	2 1/2"	58	77	277.5/358.3	121.5/142	75	180	154.5/187.6	HPA105DA/HPA125SR
76	3"	70	91	358.3/403.6	142/151	105	220	187.6/204.7	HPA125DA/HPA140SR
89	3 1/2"	85	106	403.6/468.4	151/174	115	250	204.7/230	HPA140DA/HPA160DA
102	4"	97	119	403.6/468.4	151/174	130	260	204.7/230	HPA140DA/HPA160DA

Related Products

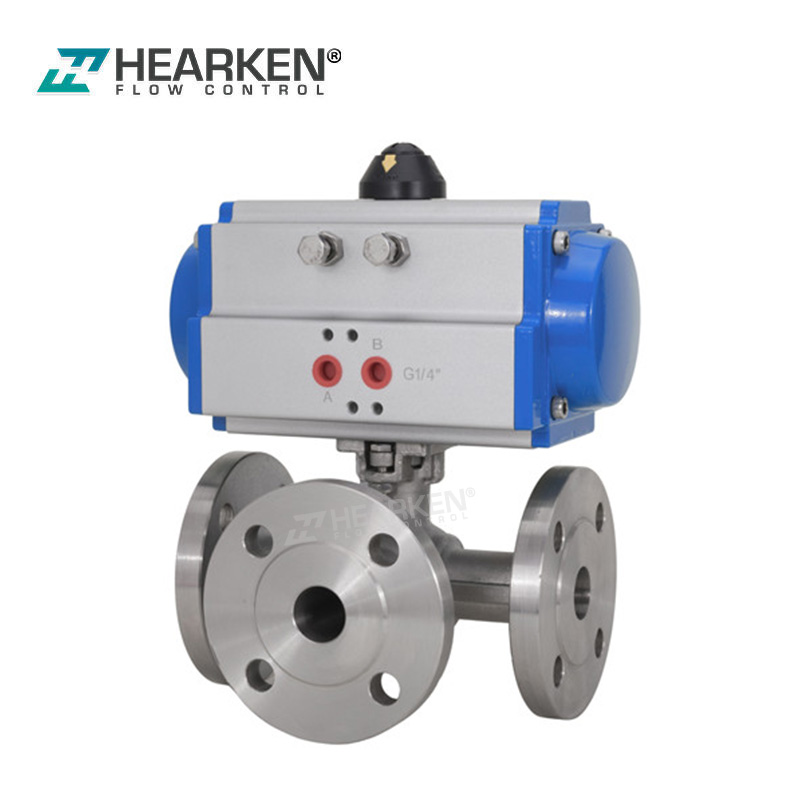

Pneumatic Actuated Flanged 3-Way Ball Valve
