Pneumatic Actuated Flanged 3-Way Ball Valve
Pneumatic Actuated Flanged 3-Way Ball Valve

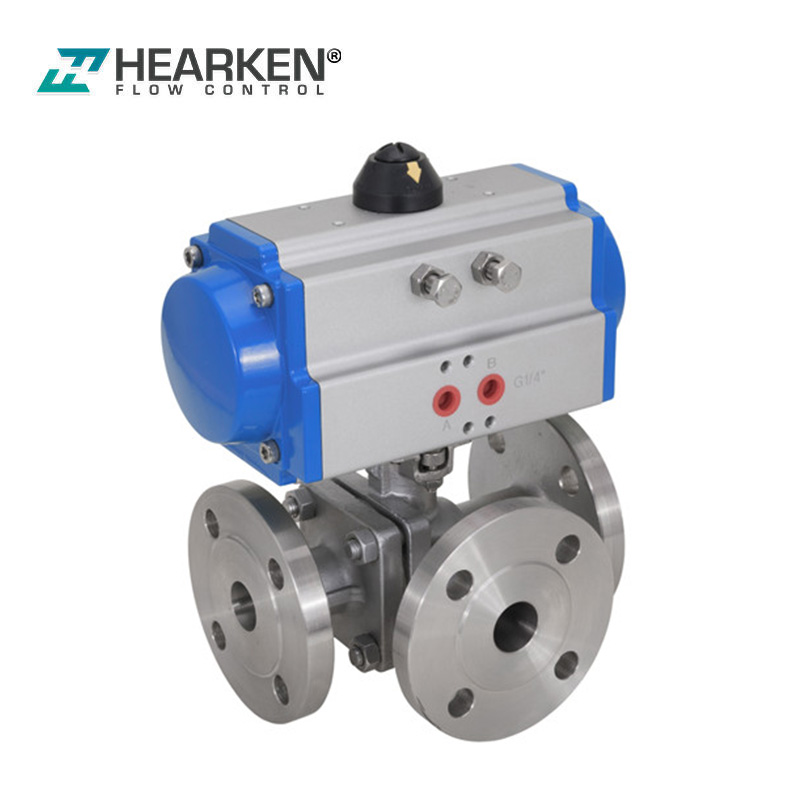

Hearken Pneumatic Actuated Flanged 3-Way Ball Valve
Pneumatic Actuated Flanged 3-Way Ball Valve MOQ

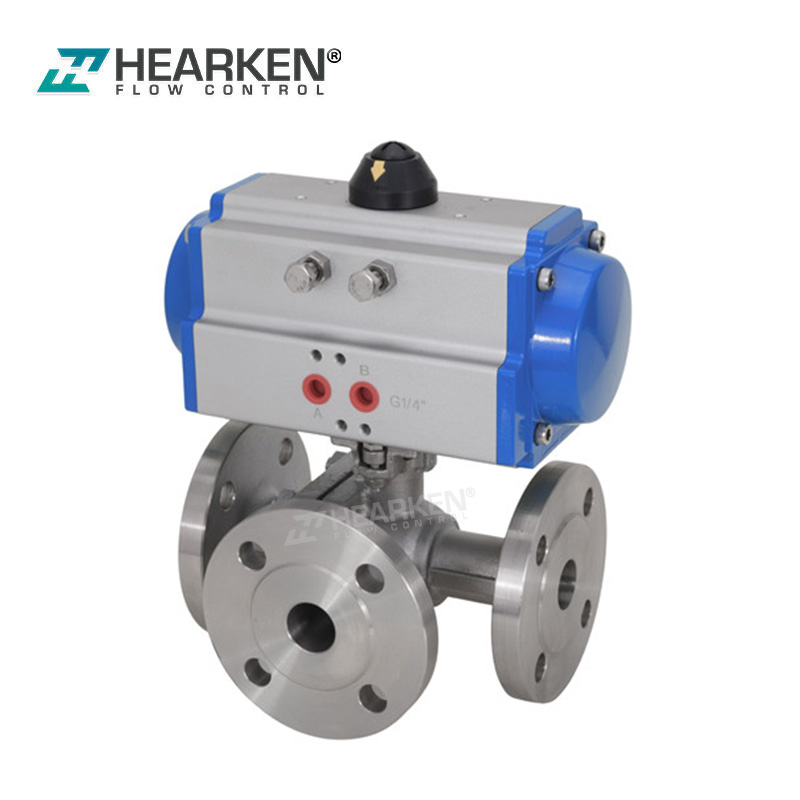

Pneumatic Actuated Flanged 3-Way Ball Valve Supplier

A versatile flow control solution tailored for directional switching and diversion in industrial fluid systems, this 3-way pneumatic flanged ball valve offers reliable performance and flexible configuration for complex piping applications.

Valve Technical Specifications
  • Size range: DN15 to DN200
  • Body material: SS304, SS316, and carbon steel

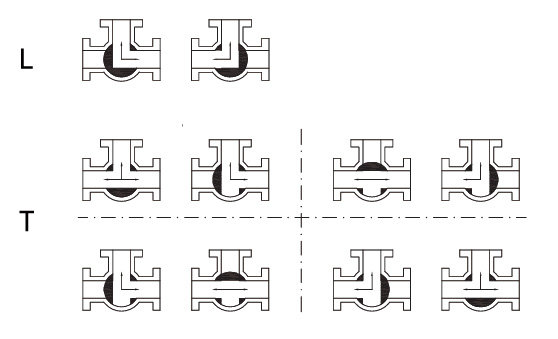

  • Configuration: Available in L-port and T-port types
  • Seal material: PTFE
  • Working temperature: -20°C to 150°C
  • Flanged connection: Manufactured to ISO 5211 or DIN 3337 standards
  • Pressure rating: PN10, PN16, ANSI 150, DIN 16, JIS 10K/16K
  • Compatible media: Water, air, gas, petroleum, oil, powder, chemicals, and general liquids
  • Protection class: IP67 weatherproof rating





Actuation and Performance
  1. The HPA pneumatic actuator is available in both double-acting and spring-return configurations.
  2. Pneumatic actuation delivers rapid valve response, enabling quick flow direction changes.
  3. The spring-return mechanism enhances operational safety.

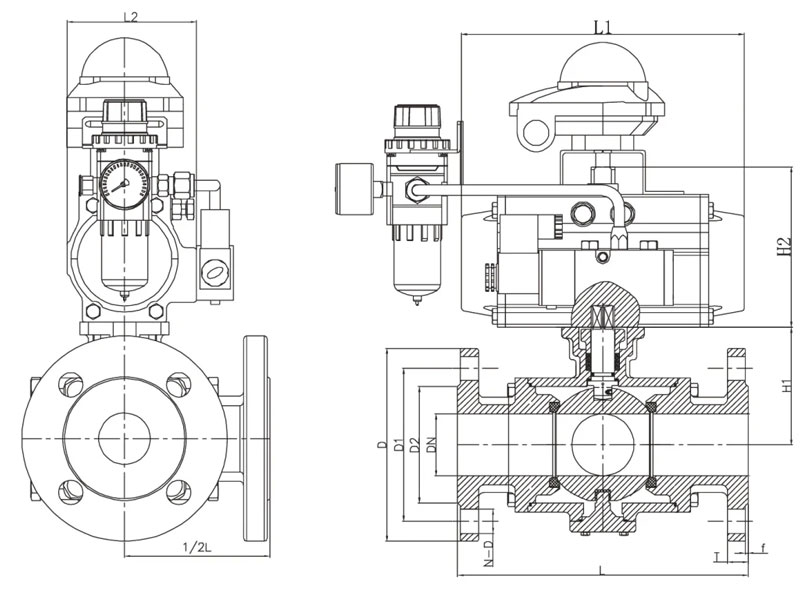

Dimension and Connection Size





DN

IN

L

H1

L1

f

H2

D

D1

D2

T

L2

N-D

Actuator Model

15

1/2"

155

65

153.7/153.7

2

92.3/92.3

95

65

45

16

72.5/72.5

4-14

HPA052DA/HPA052SR

20

3/4"

165

65

153.7/172.4

2

92.3/110.7

105

75

58

18

72.5/83

4-14

HPA052DA/HPA063SR

25

1"

181

68

172.4/188.3

2

110.7/121

115

85

68

18

83/95.5

4-14

HPA063DA/HPA075SR

32

1 1/4"

190

79

188.3/215

2

121/128

140

100

78

18

95.5/103.5

4-18

HPA075DA/HPA083SR

40

1 1/2"

212

85

215/248.5

2

121/136.2

150

110

88

18

103.5/108

4-18

HPA083DA/HPA092SR

50

2"

232

93

248.5/277.5

2

136.2/154.5

165

125

102

18

108/121.5

4-18

HPA092DA/HPA105SR

65

2 1/2"

290

121

277.5/358.3

2

154.5/187.6

185

145

122

18

121.5/142

8-18

HPA105DA/HPA125SR

80

3"

310

153

358.3/403.6

2

187.6/204.7

200

160

138

20

142/151

8-18

HPA125DA/HPA140SR

100

4"

350

171

403.6/468.4

2

204.7/230

220

180

158

20

151/174

8-18

HPA140DA/HPA160SR

Related Products

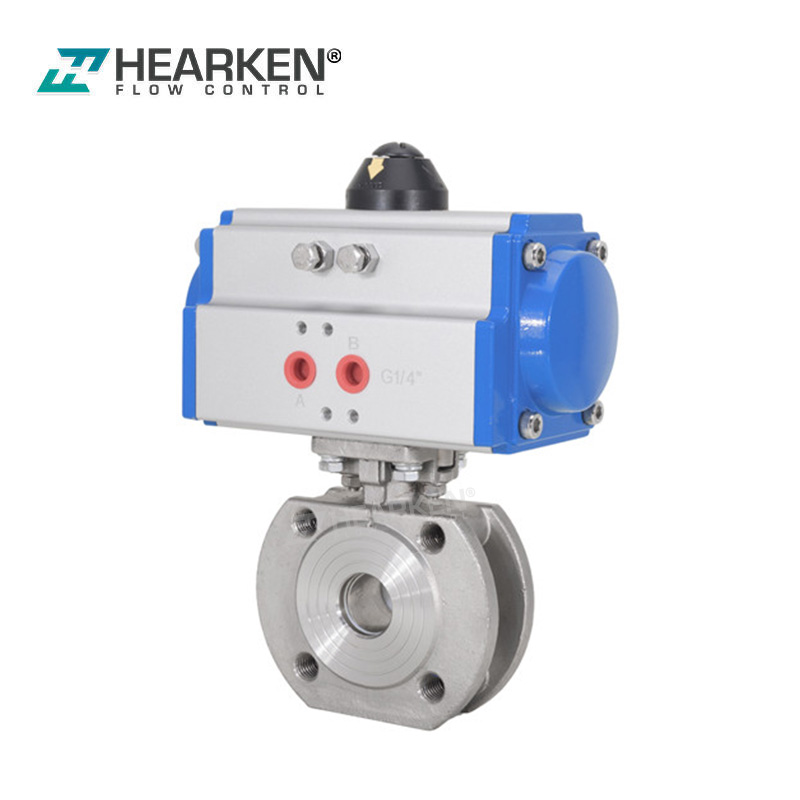

Italian Thin Design Pneumatic Wafer Ball Valve

Italian Thin Design Pneumatic Wafer Ball Valve

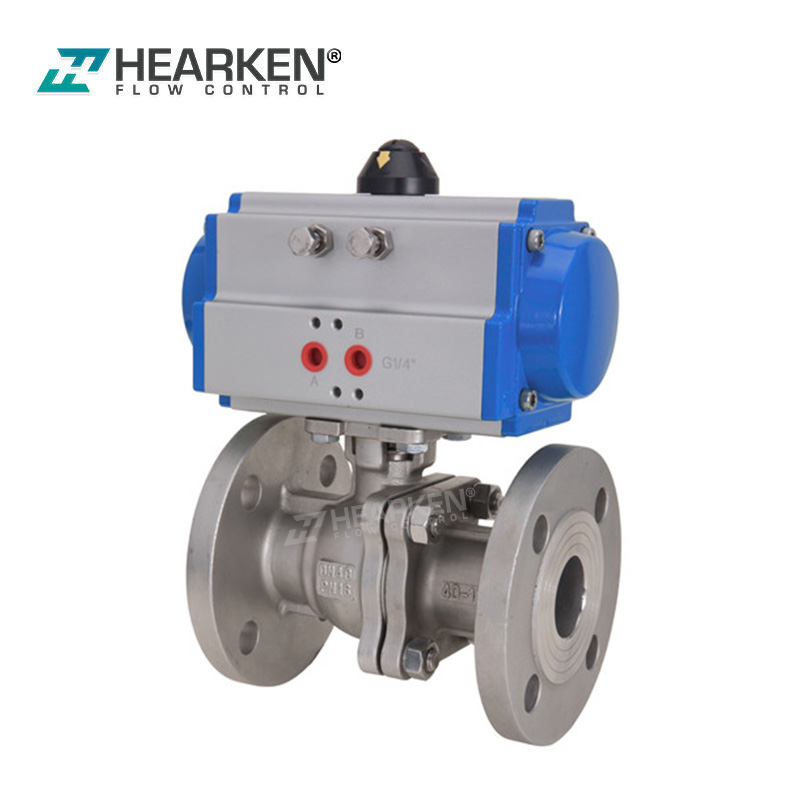

Hearken Pneumatic Operated Flange Ball Valve
