Italian Thin Design Pneumatic Wafer Ball Valve
Italian Thin Design Pneumatic Wafer Ball Valve

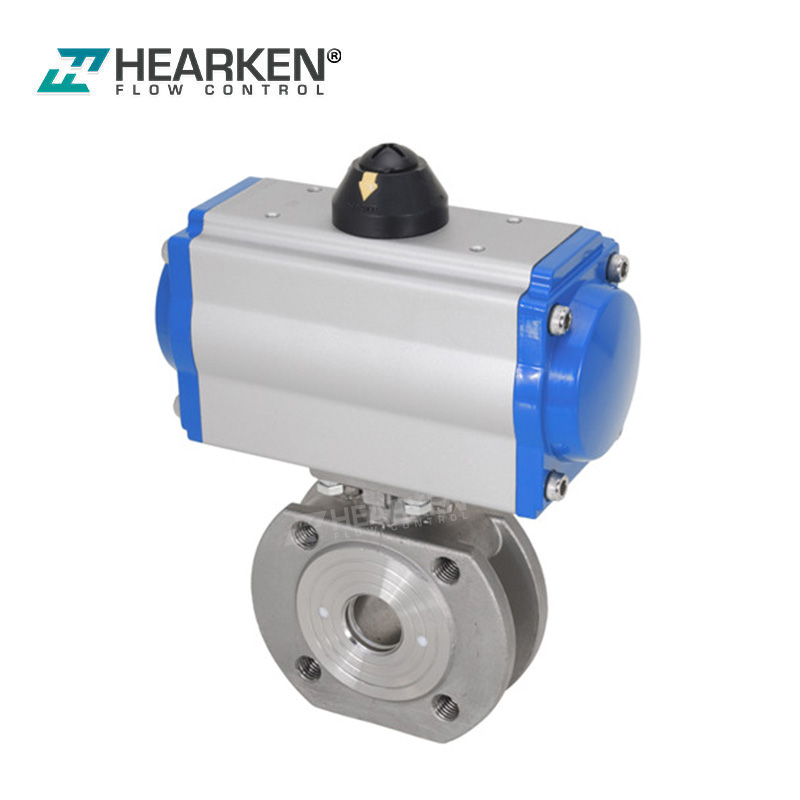

Hearken Italian Thin Design Pneumatic Wafer Ball Valve
Italian Thin Design Pneumatic Wafer Ball Valve MOQ

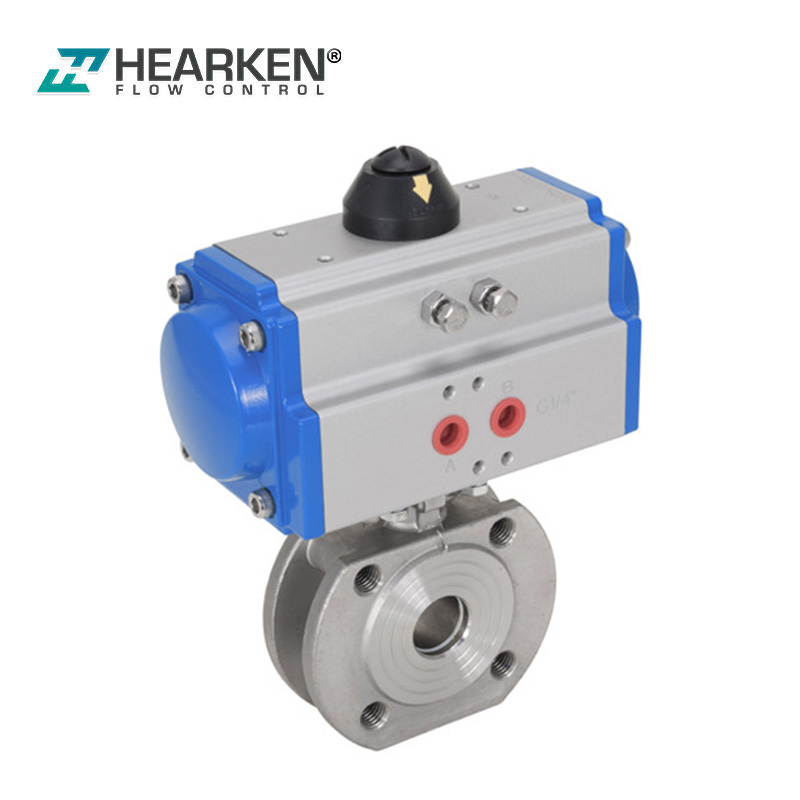

Italian Thin Design Pneumatic Wafer Ball Valve price

The Italian Thin Design pneumatic wafer ball valve is a high-performance solution for modern industrial piping systems where space and weight are critical factors.

Technical Specifications
  • Size range: Available from DN15 to DN100 to meet diverse piping requirements.
  • Material options: Constructed from premium SS304, SS316, or Carbon Steel for enhanced durability.
  • Sealing system: Equipped with PTFE seals to ensure zero leakage and low friction.
  • Pressure rating: Designed to operate reliably at a standard pressure of 1.6Mpa.
  • Temperature tolerance: Capable of maintaining performance within a range of -20 to 150 degrees.
  • Media compatibility: Versatile application across water, air, gas, petroleum, oil, and various liquids.



Actuation and Performance
  • Actuator configurations: Supports both double acting and spring return pneumatic actuator models for flexible control.
  • Standardized mounting: Complies with ISO 5211 and DIN 3337 standards for seamless valve-to-actuator integration.
  • Ingress protection: Features an IP67 weather-proof rating, making it suitable for demanding environmental conditions.
  • Compact design: Utilizes an Italian thin wafer profile to minimize installation space and overall weight.

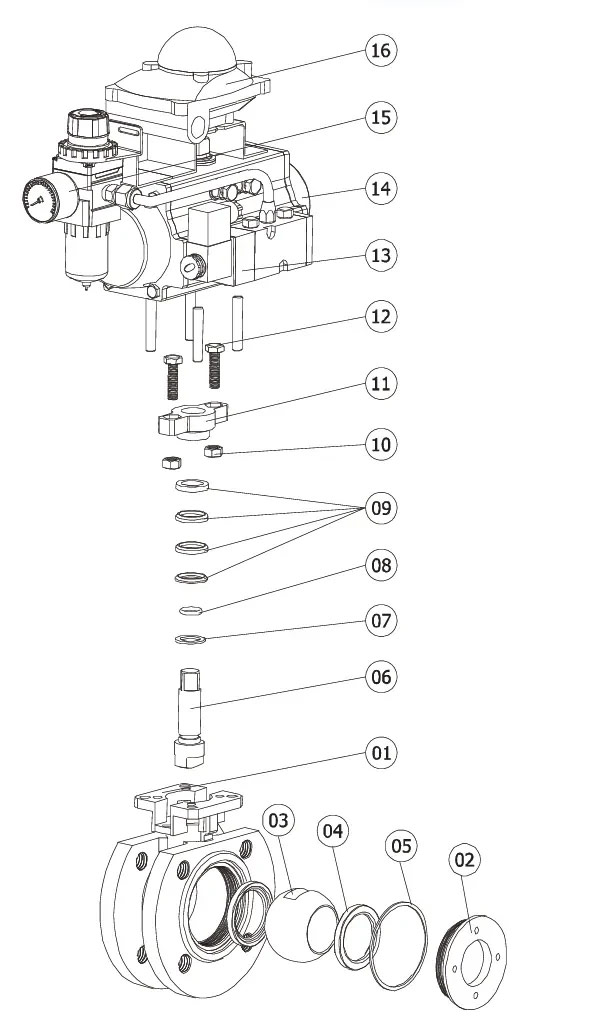

Parts and Material

No.

Part Name

Material

1

Valve Body

Carbon Steel/Stainless Steel

2

Valve Bonnet

Carbon Steel/Stainless Steel

3

Ball

Stainless Steel

4

Valve Seat

PTFE/Nylon/PPL

5

Valve Body Gasket

PTFE/PPL

6

Valve Stem

Stainless Steel

7

Thrust Washer

Stainless Steel

8

O - Ring

PTFE

9

Packing

PTFE

10

Nut

Stainless Steel

11

Gland

Stainless Steel

12

Bolt

Stainless Steel

13

Solenoid Valve

Aluminum Alloy

14

Pneumatic Actuator

Aluminum Alloy

15

Air Filter

Aluminum Alloy+PC

16

Limit Switch Box

Aluminum Alloy

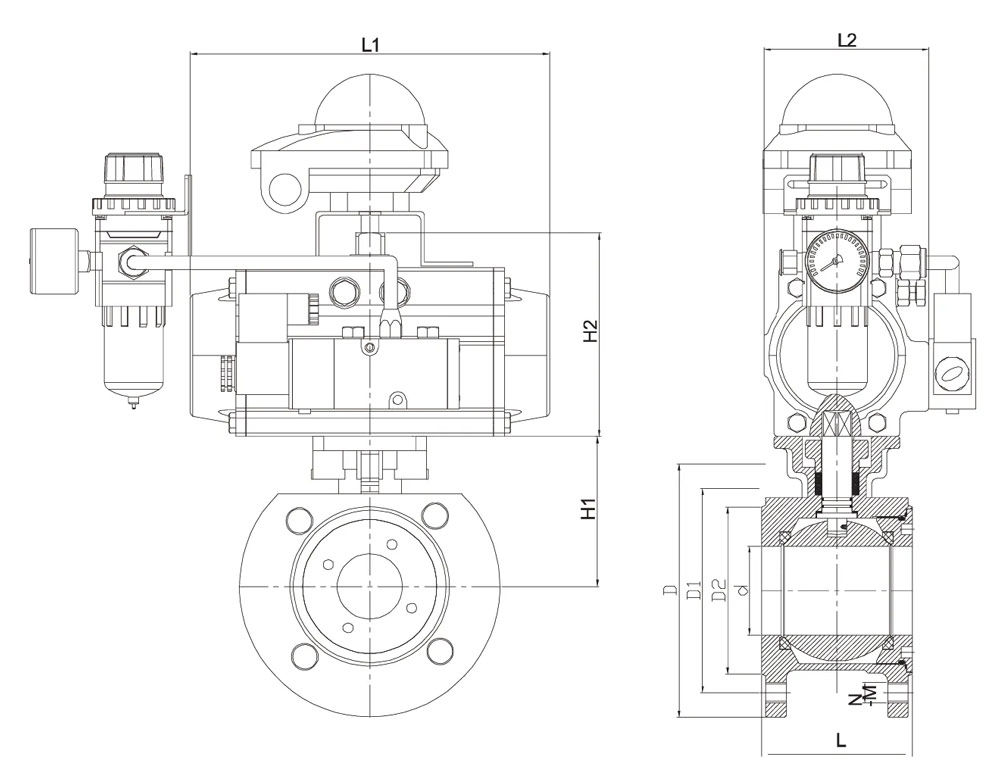

Dimensions and Actuator Selection





DN

IN

d

L

L1

L2

H1

H2

D

D1

D2

N-M

Actuator Model

15

1/2"

14

36

153.7/153.7

72.5/72.5

48

92.3/92.3

88

65

45

4-12

HPA052DA/HPA052SR

20

3/4"

19

40

153.7/172.4

72.5/83

53

92.3/110.7

98

75

58

4-12

HPA052DA/HPA063SR

25

1"

24

44

153.7/188.3

72.5/95.5

59

92.3/121

105

85

68

4-12

HPA052DA/HPA075SR

32

11/4"

29

52

172.4/188.3

83/95.5

71

110.7/121

130

100

78

4-16

HPA063DA/HPA075SR

40

11/2"

38

64

188.3/215

95.5/103.5

76

121/128

148

110

88

4-16

HPA075DA/HPA083SR

50

2"

48

83

215/248.5

103.5/108

85

121/136.2

165

125

102

4-16

HPA083DA/HPA092SR

65

21/2"

64

107

248.5/277.5

108/121.5

102

136.2/154.5

185

145

122

8-16

HPA092DA/HPA105SR

80

3"

76

120

277.5/358.3

121.5/142

112

154.5/187.6

200

160

138

8-16

HPA105DA/HPA125SR

100

4"

95

145

358.3/403.6

142/151

146

187.6/204.7

217

180

158

8-16

HPA125DA/HPA140SR
