Top-Rated Valve Limit Switch Box Brands

What Criteria Define the Best Valve Limit Switch Box Brands?

To be considered a leader in the pneumatic automation sector, a brand must prioritize rugged construction and universal compatibility. A high-quality limit switch box acts as the "eyes" of your pneumatic control valve actuator. It must withstand extreme temperatures, constant vibrations, and corrosive industrial chemicals without losing accuracy over time. Most top-tier manufacturers use die-cast aluminum or heavy-duty stainless steel for their housings to ensure long-term longevity in the field.

Furthermore, industry-leading brands ensure their products follow the NAMUR mounting standard. This is crucial because it allows the box to fit perfectly onto a pneumatic actuator double acting or a spring return pneumatic actuator, regardless of the manufacturer. This standard universal interface simplifies installation and ensures the feedback cams align perfectly with the actuator's pinion.

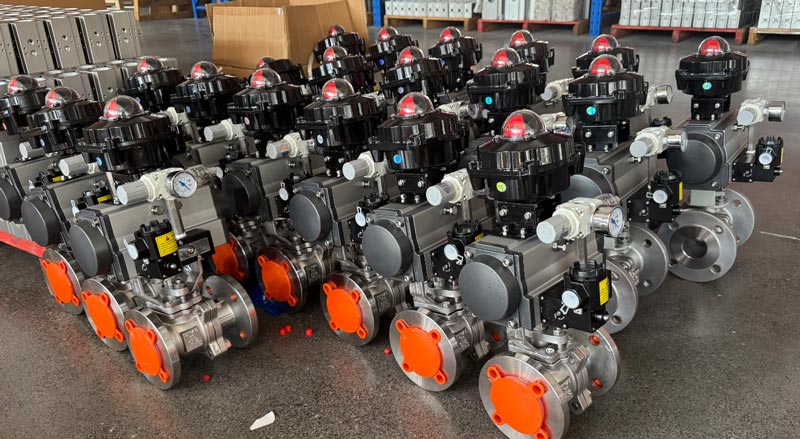

Internal switch quality is the final pillar of a great brand. Whether the box uses mechanical micro-switches or inductive proximity sensors, it needs to handle millions of cycles. This level of reliability is why professional brands are trusted to monitor a stainless steel pneumatic actuated flanged ball valve in critical processing lines where an incorrect position signal could lead to a catastrophic shutdown.

How Do Industry Leaders Like Westlock and TopWorx Set the Standard?

Westlock and TopWorx have earned their reputations through specialized engineering and high-visibility designs specifically tailored for pneumatic systems. Westlock is famous for its signature "beacon" indicator, which features a high-contrast color scheme that allows technicians to confirm valve status from across a loud factory floor. Their modular designs make it easy to integrate additional internal sensors, which simplifies the overall footprint of the pneumatic assembly.

TopWorx, part of the Emerson family, is known for its advanced proximity sensing technology. This is often the preferred choice for a butterfly valve pneumatic actuator used in heavy-duty mining or offshore drilling. Their products are built to survive in environments where traditional mechanical switches might wear out due to high-cycle frequency or succumb to heavy electrical interference.

These brands focus on high-end integration and digital communication. Their products often support modern bus protocols, allowing the limit switch box to send detailed diagnostic data back to a central control system. While these features come at a premium, the data they provide helps plants move toward predictive maintenance, significantly reducing the chance of unexpected downtime in large-scale pneumatic operations.

Why is Hearken a Leading Provider of High-Performance Limit Switch Boxes?

Hearken has emerged as a top-rated brand by offering industrial-grade reliability paired with exceptional value for pneumatic systems. They provide a comprehensive range of monitoring solutions, including the widely recognized APL-210N limit switch box and the ITS100 valve position monitor. These devices are engineered for easy adjustment and long-term durability in harsh outdoor environments, making them a favorite for plant managers looking for reliable feedback.

Specialized Models for Hazardous Areas

For industries requiring maximum safety, the Hearken ITS300 explosion-proof series offer robust protection. These models provide essential feedback for pneumatic systems in refineries and chemical plants where flammable gases are present. By using high-quality materials, Hearken ensures their boxes resist rust and chemical degradation, maintaining a clear visual signal even after years of exposure to the elements.

Versatility Across Pneumatic Actuator Types

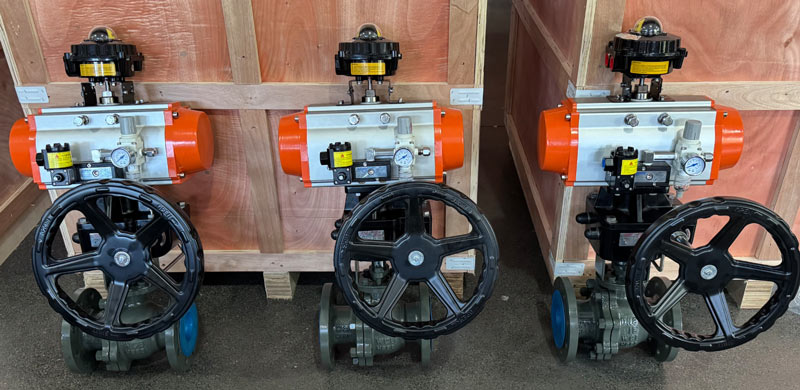

What makes Hearken stand out is its versatility across various pneumatic setups. Their limit switch boxes work seamlessly with a rotary actuator pneumatic design for standard open-close tasks or a heavy pneumatic actuator for large-scale applications. Whether you are monitoring a small bore valve or a large-scale industrial flow system, Hearken’s commitment to precision and ruggedness makes them a strong contender for any modern pneumatic automation project.

Summary

Choosing a top-rated brand like Hearken ensures precise position feedback and long-term reliability for your pneumatic valve systems.

FAQ

1. Is the APL-210N compatible with all pneumatic actuators?

The APL-210N follows the NAMUR mounting standard, which makes it compatible with almost any pneumatic control valve actuator that features a standard top-mounting pad.

2. What is the benefit of using a spring return pneumatic actuator?

A spring return model provides a fail-safe mechanism, automatically moving the valve to a safe position (open or closed) if the compressed air supply is lost.

3. Why would I choose the ITS100 over a mechanical switch box?

The ITS100 often utilizes proximity sensors which have no moving parts. This makes them more durable for high-cycle applications where a mechanical switch might eventually wear out.

4. Can I use the HVM-100 in a corrosive chemical plant?

Yes, the HVM-100 is designed with a rugged housing that can be ordered in materials or coatings specifically meant to withstand corrosive environments and prevent structural degradation.

5. How does a limit switch box improve pneumatic safety?

It provides a redundant check. Even if the control system thinks air has been sent to the actuator, the limit switch confirms if the valve actually moved to the intended position.
