PVC Butterfly Pneumatic Actuated Valve

GET A QUOTE >> >

Electric Butterfly Valve

Electric Butterfly Valve

Electric Butterfly Valve

Electric Butterfly Valve

Electric Butterfly Valve

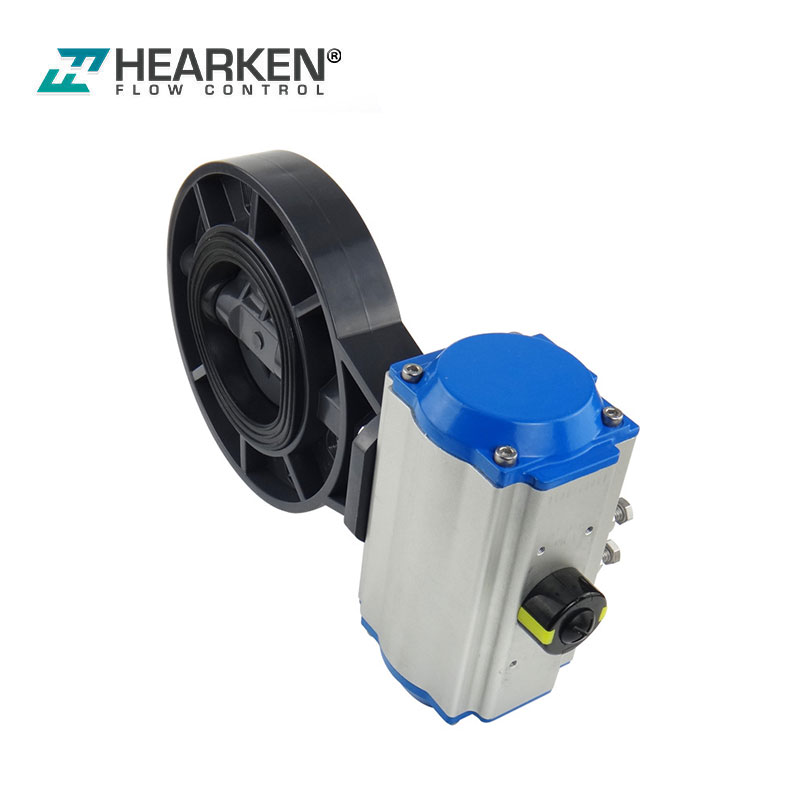

PVC butterfly pneumatic actuated valve has the advantages of simple structure, reliable sealing, light opening, long service life and convenient maintenance. Therefore, it is widely used in various pipelines of water supply and drainage, building fire protection, etc., especially in fire protection pipelines.

Description

Butterfly Valve Parts and Material

NO	Name	Material
1	Body	RPP.PVDF.PPH.ABS.UPVC.CPVC
2	Disc	RPP.PVDF.PPH.ABS.UPVC.CPVC
3	Stem	ICr18Ni9Ti
4	Valve Seat	EPDM.FRM
5	Sealing Ring	EPDM.FRM
6	Electric Actuator	Aluminium alloy

Dimension in mm

DN(mm)	D3	D1				D2	L	L1	n-∅	Platform Center Distance	The Stem Size	Reference Pneumatic Model
DN(mm)	D3	D1	JIS	DIN	ANSI	D2	L	L1	n-∅	Platform Center Distance	The Stem Size	Swicth Type	Regulation
25	115	85	90	85	80	75	35	140	4-14	50/70	11*11	05	05
32	135	100			90	80	39	140	4-18	50/70	11*11	05	05
40	145	110	105	110	98	80	39	140	4-18	50/70	11*11	05	05
50	160	125	120	125	120	85	45	150	4-18	50/70	11*11	05	05
65	180	145	140	145	140	105	48	150	4-18	50/70	11*11	05	05
80	195	160	150	160	152	120	48	165	8-18	50/70	11*11	05	05
100	215	180	175	180	190	138	58	165	8-18	50/70	11*11	05	05
125	245	210	210	210	216	183	70	190	8-18	102	14*14	10	10
150	280	240	240	240	240	200	76	230	8-23	102	14*14	10	10
200	335	295	290	295	298	260	92	260	8-23	89	17*17	16	16
250	395	350	355	350	362	306	114	300	12-23	89	17*17	20	20
300	445	400	400	400	432	360	120	390	12-23	89	22*22	40	40
350	505	460	445	460	476	422	130	390	16-23	125	22*22	60	60
400	560	515	510	515	540	482	140	535	16-23	125	22*22	60	60
450	565	565	565	578	615	520	152	590	20-26	125/140	∅32*T10	100	100
500	620	620	620	635	670	590	152	640	20-26	125/140	∅32*T10	100	100
600	725	730	725	749	780	685	178	/	20-30	125/140	∅32*T10	200	200
